SCM5B48-01: Accelerometer Input Module

Accelerometer Input Module

Product Availability:

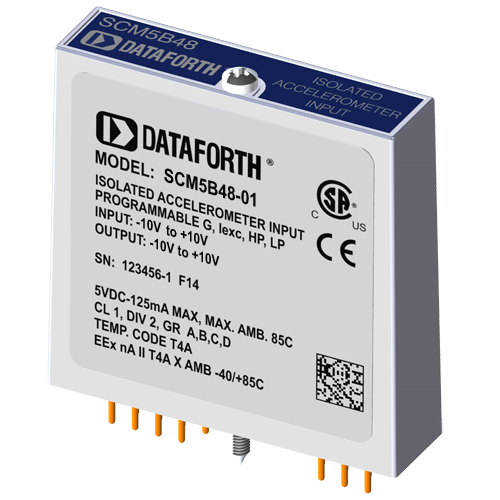

The SCM5B48 provides excitation to piezoelectric sensors with built-in microelectronic amplifiers, commonly known as ICP®* or IEPE* or LIVM* sensors. The module provides a constant current excitation to the sensor, then isolates, filters, and amplifies the sensor output, yielding a high-level analog voltage output. The excitation current, signal gain, and filter high-pass and low-pass cutoff frequencies are field-configurable through a set of slide switches.

Six poles of signal filtering in the SCM5B48 module result in greater than 100dB of normal-mode rejection for signal frequencies above the cutoff frequency. One pole of filtering is on the field side of the isolation barrier for anti-aliasing purposes and the remaining five-pole programmable Bessel filter is located on the system side. High-pass filtering is achieved through a second order passive filter, located on the field side. If desired, the output switch can be turned on continuously by simply connecting pin 22, the Read-Enable pin, to I/O Common, pin 19.

The SCM5B48 offers the option of setting the constant current source for sensor excitation to common values of 4mA or 9mA with a compliance voltage of 24VDC. Programmable gains of 1, 10 and 100 are selectable and the module offers a ±10V output. The required supply level is +5VDC, ±5%.

To ensure protection of expensive data acquisition equipment, the SCM5B48 module signal inputs and sensor excitation outputs are protected against accidental connection of voltages up to 240Vrms.

*ICP is a registered trademark of PCB Group Inc.
*IEPE is Integrated Electronic Piezo-Electric
*LIVM is Low Impedance Voltage Mode


  • Interfaces to ICP®* or IEPE* or LIVM* Sensors
  • ±10V Output Range
  • 1500Vrms Transformer Isolation
  • ANSI/IEEE C37.90.1 Transient Protection
  • Input Protection to 240Vrms Continuous
  • 1, 10, and 100 Programmable Gain
  • 2.5, 5, 10, and 20kHz Programmable LP Filter
  • 0.2 and 10Hz Programmable HP Filter
  • 4mA or 9mA Programmable Current Excitation
  • ±0.2% Accuracy
  • ±0.01% Linearity
  • Low Drift with Ambient Temperature
  • -40°C to +85°C Operating Temperature Range
  • CE Compliant, CSA and FM Approvals Pending
  • Mix and Match Module Types on Backpanel

Block Diagram


Frequently Asked Questions

Can Dataforth provide calibration reports for modules I purchased?
Yes we can provide calibration reports for the modules that you purchased.

You can either
a) visit to search for Test Report Datasheets by Serial Number or
b) you can send us a list of model numbers and their serial numbers to

Is the calibration of Dataforth modules traceable to NIST standards?
Yes, calibration of Dataforth modules is traceable to NIST standards.

Analog Devices announced a last time buy and discontinuance of their signal conditioning modules. Can I replace them with Dataforth signal conditioning modules?
Yes, in general, Dataforth signal conditioning modules are a direct replacement for all Analog Devices signal conditioning modules. e.g. "SCM5B35-xx: Linearized 4-Wire RTD Input Modules" will replace Analog Devices "5B35: Isolated 4 Wire RTD Input Signal Conditioning Module".

Please note that Dataforth signal conditioning modules are RoHS II compliant.

Can you explain how to use the DIP switches on SCM5B48 to achieve different settings?
Below are the SCM5B48 configurable parameters and their associated DIP switch designators in the order they appear left to right in the data sheet, Figure 2: SCM5B48 Side Label.

High Pass Filter, S5: DC, 0.2Hz, 10Hz

Switch S5 selects between DC coupling or AC coupling and between 0.2Hz or 10Hz low end of the High Pass filter cutoff frequencies.

Gain, S4: 1, 10, 100

Switch S4 selects from among the Gain settings = 1, 10, or 100. Since the output range is a fixed +/-10V -01 or +/-5V -02, the implication of this is that switch S4 actually selects the input voltage range as in the formula Vin = Vin max / G. Example: in an SCM5B48-01, S4 =10 the input voltage range is Vin = +/-10V / 10 = +/-0.1V.
Keep in mind, for DC coupling Vout = VAC + VDC which is limited to +/-10V total for -01 and +/-5V total for -02.

Excitation, S1: 4mA, 9mA

Switch S1 selects between excitation current sources of 4mA or 9mA +/-10%. They both have a compliance voltage of 24V +/-10%.

Low Pass Filter, S3, S2: 2.5kHz, 5kHz, 10kHz, 20kHz

Switch S3 and S2 select from among the Low Pass filter cutoff frequencies of 2.5kHz, 5kHz, 10kHz, or 20kHz.

Keywords/Phrases: SCM5B48, SCM5B48 DIP switches, SCM5B48 settings

What is the recommended power supply for Dataforth SCM5B and 8B modules?
The recommended power supply for the Dataforth SCM5B and 8B modules are the linear power supplies in our SCMXPRT/SCMXPRE series. The SCMXPRT/SCMXPRE power supplies output 5V and have options for 1A output current (SCMXPRT-001) or 3A output current (SCMXPRT-003).

The SCMXPRE series is identical to its SCMXPRT counterpart, but is configured for European voltage standards.

The SCMXPRT-001/SCMXPRE-001 both have the option for DIN rail mounting as well (SCMXPRT-001D/SCMXPRE-001D).

Other power supplies that meet that power requirements of the SCM5B and 8B modules can be used as well, but it is strongly recommended to use a linear power supply rather than a switch-mode power supply. Switching power supplies can add noise artifacts to the output of your modules.

Does Dataforth offer SCM5B48 modules with customized fixed-parameters?
Please send Dataforth the selections for the four configurable parameters of the SCM5B48.
Below are the parameters in the order they appear left to right in the data sheet, Figure 2: SCM5B48 Side Label.

High Pass Filter, S5: DC, 0.2Hz, 10Hz
Gain, S4: 1, 10, 100
Excitation, S1: 4mA, 9mA
Low Pass Filter, S3, S2: 2.5kHz, 5kHz, 10kHz, 20kHz

Dataforth will assign custom module number, generate a data sheet, and send it for review and signoff.

Keywords/Phrases: SCM5B48 fixed-parameter, SCM5B48 preset-parameter, fixed-parameter, preset-parameter

Can I get the required 5VDC from the USB connector of my notebook to power my SCM5B48?
The SCM5B48 could require up to 165mA max from the 5VDC power source.
Check your notebook's user manual for the current available from the USB connector or contact the notebook manufacturer and ask them for details.

If I purchase a backplane with no CJC, will I still be able to use modules that require the CJC enable jumper to be installed?
Yes. Backplanes with no CJC will still come with the CJC enable installed on the backplane.

Do you have any SCM5B modules with a 50kHz bandwidth?
None of our standard SCM5B modules have a 50kHz bandwidth. However, it is possible to order a custom SCM5B module with 50kHz bandwidth. Keep in mind that new customs require a 10 pc minimum order and are subject to extra design fees.

Do you have an MTBF figure for the SCM5B39? What are the main failure modes?
The failure rate calculations for our SCM5B modules can be found in our application note AN503:

There are no dominant failure modes.

I just received an SCMPB01 back panel. How should I configure jumpers J1 through J4 for my application?
The factory configuration for jumpers J1 through J4 is the optimal configuration for most applications. If for some reason this jumper configuration will not work/is not working in your application, see our application note AN502 "Ground Connections and Host System Interfaces" for other valid jumper configurations and what situations you would use them.

Where can I find the pinout of my SCM5B module?
Please see the SCM5B Module Dimensions and Pinouts link from the SCM5B section of our website:

You can also find the module dimensions and pinouts in our product catalog.

Where can I find the MTBF of my module?
Information on MTBF for SCM5B, SCM7B, 8B and DSCA is available on our website. Please see application note AN802 for more details. Application notes can be found under the "Literature" tab on the top navigation bar.

On the SCM5B modules, what is the purpose of pin 18 (Vin), why is it tied to pin 20 (Vout)? Doesn't Vout provide the output by itself?
Vout is used with input modules, which are all the SCM5B models except for the SCM5B39 and SCM5B49. Vin is used for output modules, SCM5B39 and SCM5B49.

The reason for doing this is because input modules acquire a signal from the field side, and then output a corresponding signal to the system side. On the contrary, output modules acquire a signal from the system side, and then output a corresponding signal to the field side. Since SCM5B backplanes are designed for all channels to accommodate either an input or an output module, the terminal/pin that you would normally get your output signal from if you were using an input module is the same terminal/pin that you would be feeding your input signal to if you were using an output module.

Do SCM5B modules with outputs scaled up to 10V have separate power requirements from their 5V counterparts?
No, all SCM5B modules have the same power requirements (5VDC) regardless of their I/O specifications. The power supply current draw of different products in the SCM5B line may vary.

What is the required resistance for jumpers J1 through J4 on my SCM5B backpanel?
J1-J4 on the SCM5B backpanels are jumper cables, so they should have 0 ohm resistance.

Should I ground my sensor wire shield to the 10-32 ground post on the SCMPB01?
It is not recommended to ground the sensor wire shield to the 10-32 ground post on the SCMPB01 because that is the system side ground, while the sensor wire is on the field side. The sensor wire shield should be grounded to the field side ground, which varies based on the signal conditioner you are using. Please see the "Shield Grounding" application note for more information.

Can I use an SCM5B module with my OM5-BP-SKT-C?
Yes, any of our SCM5B modules are able to be mounted and operated on Omega's OM5-BP-SKT-C board.

Will the isolation on the SCM5B modules support a discharge of 1500VDC without damaging anything connected to the output?
Yes, the SCM5B modules are isolated up to 1500 Vrms, which means that if the common mode voltage between the field side and system side is limited to 1500Vrms, the device will be protected.

However, the input protection for SCM5B modules (i.e., the voltage across the +IN and -IN input terminals) is 240Vrms max.

How do I convert an RMS voltage to its corresponding peak voltage?
To convert an RMS voltage to its corresponding peak voltage, you simply take the RMS voltage value and multiply it by the square root of 2, or roughly 1.414.

For example, 1500Vrms corresponds to a peak voltage of 1500 * 1.414 = 2121 Vp

If the input range of my signal conditioner is -1V to +1V and the output range is 0 to 10V, does this mean that it ignores polarity?
A signal conditioner with these I/O ranges does not mean that the module ignores the polarity of your voltage input. The output of voltage input modules are scaled linearly, meaning an input of -1V would correspond to an output of 0V, an input of 0V would correspond to an output of 5V, an input of +1V would correspond to an output of 10V, and so on.

Can SCM5B modules be hot swapped?
Not just SCM5B modules, but any signal conditioning module series and MAQ20 I/O modules can be hot swapped. A minimal amount of signal settling time may result, but there will be no damage to the device.

What does "Response time, 90% span" mean on the datasheet for my module?
Normally, a response time figure refers to how quickly a module's output can "respond" to a change in the input signal. "Response time, 90% span" refers to how fast a module can adjust its output when a step signal is applied at the input, where the magnitude of this step input is 90% of the input span of the module.

Do I need to purchase the SCMXCJC with my SCMPB03?
No, the SCMPB03 comes with the CJC built into the backpanel.

How does the load resistance of a module affect the noise at the output?
Noise at the output of a module is independent of load resistance.

Can I use the SCMXBEFE and SCMXSE accessories to make my SCMPB01/2 DIN rail mountable?
No, converting any of the 16 channel SCM5B backplanes to something DIN rail mountable is a much more involved process than the SCMPB03/04. If you would like a 16 channel SCM5B backplane that can mount on a DIN rail you must purchase an SCMPB01-2, SCMPB01-3, SCMPB02-2 or SCMPB02-3.

Is the SCM5B40-06 sensitive to being soldered into a board? Would soldering it damage the part?
We do not recommend soldering the SCM5B pins to a board as it could potentially damage the module. Soldering the pins would also void the warranty.

Many sockets are available which accept the mounting pins. TE Connectivity / AMP part number 50865-5 is an example of these sockets and any equivalent part will work as well.

What types of DIN rails does the DIN rail mounting of the SCMPB04 attach to?
The DIN rail mounting of the SCMPB04 can mount to DIN rail types EN 50022-35x7.5, EN 50022-35x15, EN 50035-G32. These can be purchased as part numbers SCMXRAIL1-XX, SCMXRAIL2-XX, pr SCMXRAIL3-XX where XX is specified as the length of the rail in meters.

Can the DIN rail mounting hardware be easily removed from the SCMPB04?
Yes, the DIN rail mounting hardware for the SCMPB04 can be easily detached and reattached from the board.

Is the SCMXPRT-003 DIN rail mountable?
The SCMXPRT-001 has an option for DIN rail mounting (part number: SCMXPRT-001D) but the SCMXPRT-003 does not. Instead, it can be mounted on the SCMXRK-002 which is a 19 inch metal rack for mounting the SCMXPRT-003 as well as various Dataforth backpanels and the SCMXIF interface board.

Is there an accelerometer input module for MAQ20?
There is not a MAQ20 module dedicated to accelerometer input. However, it’s possible to frontend a MAQ20 voltage input module with an SCM5B48 Accelerometer Input Module using the Dataforth MAQ20-5B25 interface cable. You’ll have to purchase the cable, the module(s) and the appropriate size SCM5B backplane to make it work, but it is possible. Essentially, you have the SCM5B48 process the accelerometer input, and then the voltage output of that module is connected to a voltage input module in your MAQ20 system.
