SCM7B37T-03

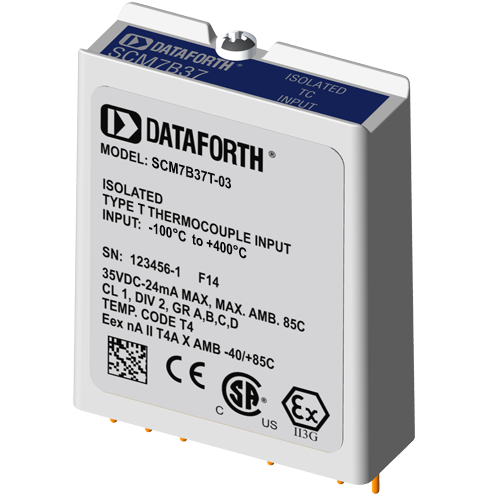

Isolated Thermocouple Input Module
SCM7B37T-03
Isolated Thermocouple Input Module
Product Availability:
- Usually stock to 2-3 weeks.
SCM7B37T-03 added to cart.
Description
SCM7B37 non-linearized modules accept a single channel of input from Type J, K, T, E, R, S, or B thermocouples. The signal is filtered, isolated, amplified, and converted to a high-level analog voltage for output to the process control system.Cold junction compensation (CJC) is performed using an NTC thermistor (see "Additional SCM7B Part Numbers" section for P/N and AN701 for further information) externally mounted under the field-side terminal block on the backpanel (Figure 1). Open thermocouple detection is upscale using a 30nA current source in the input circuitry.
These modules incorporate a five-pole filtering approach to maximize both time and frequency response by taking advantage of both Thomson (Bessel) and Butterworth characteristics. One pole of the filter is on the field side of the isolation barrier; four are on the process control system side.
After the initial field-side filtering, the input signal is chopped by a proprietary chopper circuit and transferred across the transformer isolation barrier, suppressing transmission of common mode spikes and surges. The signal is then reconstructed and filtered for process control system output.
Modules accept a wide 14 - 35VDC power supply range (+24VDC nominal). Their compact packages (2.13"x1.705"x0.605" max) save space and are ideal for high channel density applications. They are designed for easy DIN rail mounting using any of the "-DIN" backpanels.
Documents
CAD Model
7B Module & Accessory 3-D CAD Models
7B Module & Accessory 3-D CAD Models
Specifications
- Thermocouple Type T
- Output Range +1 to +5 V
- Input Temperature Range -100 to 400 °C
- Mechanical Format Modular plug-in-board
- Isolation Voltage 1500 Vrms
- Isolation Type Transformer 2-way
- Accuracy ±0.03% (0.15°C) typical, ±0.1% (0.50°C) max
- Supply Voltage 14 to 35 VDC
- Input Voltage Withstand 120 Vrms
- Gain/Offset Adjust N/A
- Module Bandwidth 3 Hz
- NMR (60 Hz) Rejection 80/85dB
- External I-to-V Resistor N/A
- Output Control Always Enabled
- Output Resistance < 1 Ohm
- Dimensions 2.13 x 1.705 x 0.605 inches
- Interface 5 or 6 pin
- Customization yes
- Weight 48 grams (1.69 ounces)
Features
- Interfaces to Type J, K, T, E, R, S, and B Thermocouples
- Provides High-Level Voltage Outputs
- 1500Vrms Transformer Isolation
- Accuracy, ±0.03% of Span Typical, ±0.1% Max
- ANSI/IEEE C37.90.1 Transient Protection
- Input Protected to 120Vrms Continuous
- Noise, 500µV Peak (5MHz), 250µV RMS (100kHz)
- CMRR, 160dB
- NMR, up to 85dB
- Easy DIN Rail Mounting
- CSA Certified, FM Approved
- CE and ATEX Compliant

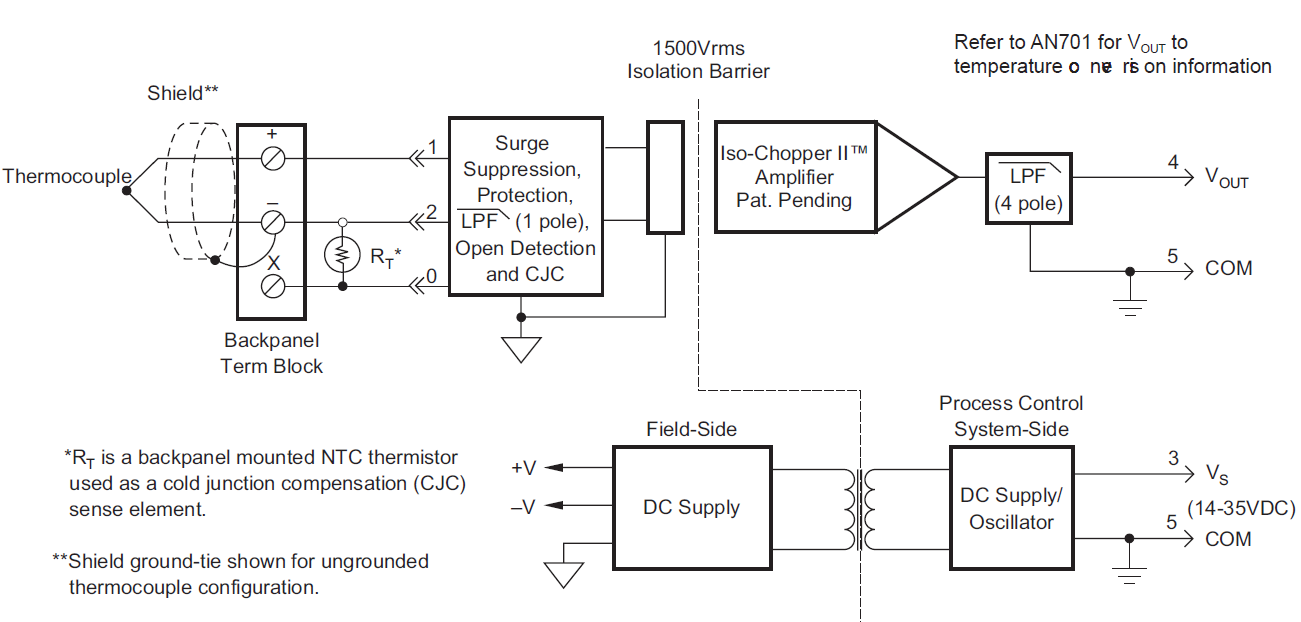

Block Diagram
Accessories
PWR-PS5R120W
Power Supply, DIN Rail Mount, 85-264 VAC 47-63 Hz In, 24 VDC 5.0 A Out
View
PWR-PS5R15W
Power Supply, DIN Rail Mount, 85-264 VAC 47-63 Hz In, 24 VDC 0.65 A Out
View
PWR-PS5R30W
Power Supply, DIN Rail Mount, 85-264 VAC 47-63 Hz In, 24 VDC 1.3 A Out
View
PWR-PS5R60W
Power Supply, DIN Rail Mount, 85-264 VAC 47-63 Hz In, 24 VDC 2.5 A Out
View
PWR-PS5R7W
Power Supply, DIN Rail Mount, 85-264 VAC 47-63 Hz In, 24 VDC 0.3 A Out
View
SCM7BP01
1 channel backpanel
View
SCM7BP01-DIN
1 channel backpanel (DIN)
View
SCM7BP02
2 channel backpanel
View
SCM7BP02-DIN
2 channel backpanel (DIN)
View
SCM7BP04
4 channel backpanel
View
SCM7BP04-DIN
4 channel backpanel (DIN)
View
SCM7BP08
8 channel backpanel
View
SCM7BP08-DIN
8 channel backpanel (DIN)
View
SCM7BP16
16 channel backpanel
View
SCM7BP16-DIN
16 channel backpanel (DIN)
View
SCM7B-PROTO
SCM7B breadboard kit
View
SCM7BPT
Non-isolated signal pass thru module
View
SCM7BXCA01
1 meter system adapter cable (DB25F to 26M)
View
SCM7BXCA02
2 meter system interface cable (DB25F to DB25F)
View
SCM7BXEV
1 channel evaluation backpanel
View
SCM7BXR1
250 Ohm current conversion resistor
View
SCMXBE
DIN rail base element without snap foot
View
SCMXBEFE
DIN rail base element with snap foot
View
SCMXCA006-01
System interface cable for backpanels, 1 meter length
View
SCMXCA006-02
System interface cable for backpanels, 2 meter length
View
SCMXIF
Ribbon cable to screw terminal interface board
View
SCMXIF-DIN
Ribbon cable to screw terminal interface board, DIN mount
View
SCMXRAIL1-1.0
DIN EN 50022-35 x 7.5 (slotted steel), 1 meter length
View
SCMXRAIL1-2.0
DIN EN 50022-35 x 7.5 (slotted steel), 2 meter length
View
SCMXRAIL2-01
DIN EN 50035-G32 (slotted steel), 1 meter length
View
SCMXRAIL2-02
DIN EN 50035-G32 (slotted steel), 2 meter length
View
SCMXRAIL3-01
DIN EN 50022-35 x 15 (slotted steel), 1 meter length
View
SCMXRAIL3-02
DIN EN 50022-35 x 15 (slotted steel), 2 meter length
View
SCMXRK-002
19 inch metal rack for mounting analog backpanels
View
SCMXSE
DIN rail side element
View
SCMXVS
DIN rail connection pins
View
Competitive Cross-Reference
- The SCM7B37T-03 equals the Analog Devices 7B37-T-03-1. For specific performance comparison, please review both datasheets.
