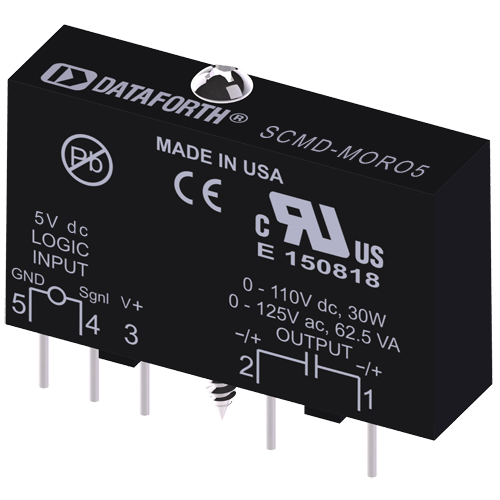

The SCMD digital relay output modules are used for switching AC and DC loads such as relays, solenoids, motor starters, or indicator lamps. All models provide up to 1000Vrms of optical isolation between the field device and the control logic. Functionality is denoted by case color—relay modules are brown.
Six backpanels are available for mounting SCMD-M relay output modules.
Frequently Asked Questions
Can SCM5B modules be hot swapped?
Not just SCM5B modules, but any signal conditioning module series and MAQ20 I/O modules can be hot swapped. A minimal amount of signal settling time may result, but there will be no damage to the device.
Can Dataforth provide calibration reports for modules I purchased?
Yes we can provide calibration reports for the modules that you purchased.
You can either
a) visit https://www.dataforth.com/TestDataReport.aspx to search for Test Report Datasheets by Serial Number or
b) you can send us a list of model numbers and their serial numbers to email@example.com
How does the load resistance of a module affect the noise at the output?
Noise at the output of a module is independent of load resistance.
If the input range of my signal conditioner is -1V to +1V and the output range is 0 to 10V, does this mean that it ignores polarity?
A signal conditioner with these I/O ranges does not mean that the module ignores the polarity of your voltage input. The output of voltage input modules are scaled linearly, meaning an input of -1V would correspond to an output of 0V, an input of 0V would correspond to an output of 5V, an input of +1V would correspond to an output of 10V, and so on.
How do I convert an RMS voltage to its corresponding peak voltage?
To convert an RMS voltage to its corresponding peak voltage, you simply take the RMS voltage value and multiply it by the square root of 2, or roughly 1.414.
For example, 1500Vrms corresponds to a peak voltage of 1500 * 1.414 = 2121 Vp
What is the difference between the SCMD-MORO5 and SCMD-MORO24?
The SCMD-MORO5 and the SCMD-MORO24 are functionally equivalent modules, however they have different input voltage and current specifications. Refer to the "SCMD Specifications" pdf on the "SCMD Series" page on our website to view the exact specifications of the modules.
How do I wire up an SCMD-MORO module?
Which terminal block you connect to on an SCMD backpanel will vary based on the model number of the board or what channel you are using. As a general rule for an SCMD-MORO module, the power supply is wired over pins 3 (+V) and 5 (Gnd). The input signal is wired over pins 4 (Sgnl) and 5 (Gnd). The output signal is over pins 1 and 2. Consult the schematic of your SCMD backpanel to determine which terminal blocks correspond to each pin.
Due to resource constraints on my computer, I'm unable to open the three dimensional CAD models provided on your website. Does Dataforth provide two demensional CAD models for download as well?
Two dimensional CAD models can be generated upon customer request. Please contact Customer Service for assistance.
