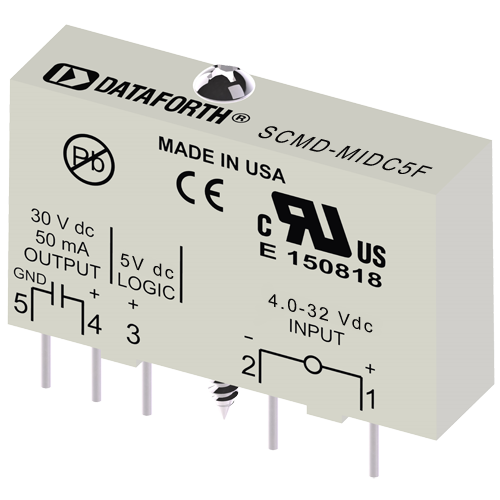

SCMD-MIDC5F

Isolated Miniature Digital Input Module

SCMD-MIDC5F
Isolated Miniature Digital Input Module

Product Availability:
  • Usually stock to 3-5 weeks. Contact Customer Service for current lead times.

Description

SCMD digital input modules provide highly reliable and safe interfaces to harsh industrial measurement and control applications. With SCMD modules installed near individual field signals, a reliable isolation barrier is provided between the field wiring computer system. Other benefits include reduction of field wiring costs and establishment of a cost effective and manageable method for system expansion and repair.

The SCMD-MIAC digital input modules are used for sensing ON/OFF AC or DC voltage levels in the ranges of 18-36, 90-140 and 180-280VAC or VDC respectively. They are protected from damage due to high-voltage transients on the input signal.

The SCMD-MIDC digital input modules provide DC voltage sensing at the lower ranges of 3.3 to 32VDC and 10 to 60VDC.

High voltage, low voltage, fast switching, and low noise options are available, designated by suffixes "A", "E", "F", and "N" respectively.

Five backpanels are available for mounting SCMD-M digital input modules.

Features

  • Plug into Backpanels for Miniature or Full-Sized Modules
  • AC Inputs for 24V, 120V, 240V
  • DC Inputs for 3.3 to 32V, 10 to 60V
  • UL Listed, CSA Certified, CE Compliant
  • 4kV Optical Isolation
  • Open-Collector Output
  • Industry-Standard Pinout and Footprint
  • Operating Temperature -30 to +80°C

Block Diagram

SCMD-MIAC/MIDC block diagram

Certifications

Specifications

  • Type Input
  • Range 4.0 to 32VDC
  • Supply Voltage 5V
  • Optional Features Fast-switching version of DC modules
  • Weight 19 grams (0.67 ounces)

Accessories

SCMD-JM8
Board Jumper, Miniature View
SCMD-PB16SM
16 Channel Backpanel, Miniature View
SCMD-PB16SMD
16 Ch Backpanel, Miniature, DIN Mount View
SCMD-PB16TSM
16 Ch Backpanel, Miniature with Term Block Output View
SCMD-PB16TSMD
16 Ch Backpanel, Miniature with Term Block Output, DIN Mount View
SCMD-PB24SM
24 Channel Backpanel, Miniature View
SCMD-PB24SMD
24 Ch Backpanel, Miniature, DIN Mount View
SCMD-PB4
4-Ch Backpanel, Full Size & Miniature View
SCMD-PB4D
4-Ch Backpanel, Full Size & Miniature, DIN Rail Mount View
SCMD-PB8SM
8 Channel Backpanel, Miniature View
SCMD-PB8SMD
8 Ch Backpanel, Miniature, DIN Mount View
