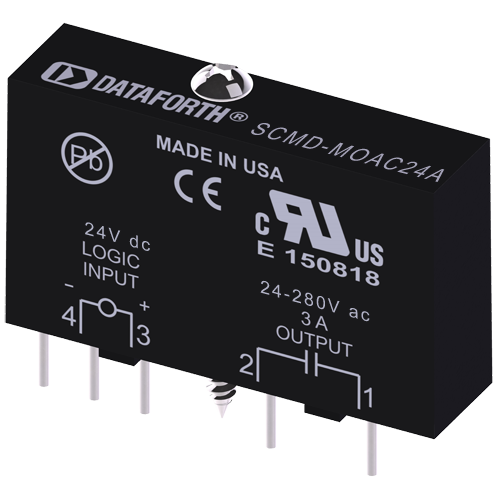

SCMD-MOAC24A
Isolated Miniature Digital Output Module
SCMD-MOAC24A
Isolated Miniature Digital Output Module
Product Availability:
- Usually stock to 2-3 weeks.
SCMD-MOAC24A added to cart.
Description
The SCMD digital output modules are used for switching AC and DC loads such as relays, solenoids, motor starters, or indicator lamps. All models provide up to 4000Vrms of optical isolation between the field device and the control logic. The AC output modules incorporate zero voltage switching and an RC snubber circuit which allows switching heavy inductive loads. Functionality is denoted by case color—AC modules are black, and DC modules are red.Six backpanels are available for mounting SCMD-M digital output modules.
Documents
CAD Model
SCMD Module & Accessory 3-D CAD Models
SCMD Module & Accessory 3-D CAD Models
Specifications
- Type Output
- Range 24 to 280VAC
- Supply Voltage 24V
- Optional Features High voltage versions (280VAC for AC modules, 200VDC for DC modules)
- Weight 19 grams (0.67 ounces)
Features
- UL Listed, CSA Certified, CE Compliant
- AC Modules have High Current Thyristor with 100 Amp Surge Capability
- Zero or Random Turn-On Available in AC Modules
- Plug into Backpanels for Miniature or Full-Sized Modules
- 4kV Optical Isolation (1500 VAC Optical Isolation for FET DC Output Modules)
- Industry Standard Pinout and Footprint
- 3.5 Amp AC Modules Provide Extra Switching Capability
- 5.0 Amp DC Modules Available
- Operating Temperature –30 to +80°C
Block Diagram
Accessories
SCMD-JM8
Board Jumper, Miniature
View
SCMD-PB16SM
16 Channel Backpanel, Miniature
View
SCMD-PB16SMD
16 Ch Backpanel, Miniature, DIN Mount
View
SCMD-PB16TSM
16 Ch Backpanel, Miniature with Term Block Output
View
SCMD-PB16TSMD
16 Ch Backpanel, Miniature with Term Block Output, DIN Mount
View
SCMD-PB24SM
24 Channel Backpanel, Miniature
View
SCMD-PB24SMD
24 Ch Backpanel, Miniature, DIN Mount
View
SCMD-PB4
4-Ch Backpanel, Full Size & Miniature
View
SCMD-PB4D
4-Ch Backpanel, Full Size & Miniature, DIN Rail Mount
View
SCMD-PB8SM
8 Channel Backpanel, Miniature
View
SCMD-PB8SMD
8 Ch Backpanel, Miniature, DIN Mount
View
Competitive Cross-Reference
- No cross reference is available.
The information available through this competitive cross reference guide are based upon product catalog information obtained from a variety of sources. The competitive cross reference information is being provided to you free of charge for your use. While Dataforth Corp has used reasonable efforts to ensure data accuracy, Dataforth Corp does not guarantee that it is error-free, nor does Dataforth Corp make any other representation, warranty or guarantee that the information is accurate, correct, reliable or up-to-date. Dataforth Corp expressly disclaims all implied warranties regarding this information, including but not limited to any implied warranties of merchantability or fitness for a particular purpose.
This information is provided only as a convenience on an "as is" basis and Dataforth Corp. or its representatives or distributors are not responsible for any incorrect, inaccurate, or incomplete information. You are solely responsible for (1) selecting the appropriate Dataforth products for your application, (2) designing, validating and testing your application, and (3) ensuring your application meets applicable standards, and any other safety, security, or other requirements.
This information is provided only as a convenience on an "as is" basis and Dataforth Corp. or its representatives or distributors are not responsible for any incorrect, inaccurate, or incomplete information. You are solely responsible for (1) selecting the appropriate Dataforth products for your application, (2) designing, validating and testing your application, and (3) ensuring your application meets applicable standards, and any other safety, security, or other requirements.
FAQ
Due to resource constraints on my computer, I'm unable to open the three dimensional CAD models provided on your website. Does Dataforth provide two demensional CAD models for download as well?
Two dimensional CAD models can be generated upon customer request. Please contact Customer Service for assistance.
Can SCM5B modules be hot swapped?
Not just SCM5B modules, but any signal conditioning module series and MAQ20 I/O modules can be hot swapped. A minimal amount of signal settling time may result, but there will be no damage to the device.
What is the minimum current required to switch the output for the SCMD-MODC?
The current required to switch the output for the SCMD-MODC is 27mA. You can find this information in the datasheet on our website: https://www.dataforth.com/catalog/pdf/SCMD-MXXX-specsheets.pdf
Can the SCMD-MODC be used directly to drive loads such as solenoids? Or are these modules used to effectively step-up a low-level digital output, which can then get used to control a relay?
Yes, the SCMD-MODC modules can be used to directly drive loads such as solenoids. The maximum on state current for some SCMD-MODC models can be up to 5A.
How does the load resistance of a module affect the noise at the output?
Noise at the output of a module is independent of load resistance.
How do I convert an RMS voltage to its corresponding peak voltage?
To convert an RMS voltage to its corresponding peak voltage, you simply take the RMS voltage value and multiply it by the square root of 2, or roughly 1.414.
For example, 1500Vrms corresponds to a peak voltage of 1500 * 1.414 = 2121 Vp
If the input range of my signal conditioner is -1V to +1V and the output range is 0 to 10V, does this mean that it ignores polarity?
A signal conditioner with these I/O ranges does not mean that the module ignores the polarity of your voltage input. The output of voltage input modules are scaled linearly, meaning an input of -1V would correspond to an output of 0V, an input of 0V would correspond to an output of 5V, an input of +1V would correspond to an output of 10V, and so on.
Can Dataforth provide calibration reports for modules I purchased?
Yes we can provide calibration reports for the modules that you purchased.
You can either
a) visit https://www.dataforth.com/TestDataReport.aspx to search for Test Report Datasheets by Serial Number or
b) you can send us a list of model numbers and their serial numbers to support@dataforth.com
In DC Digital Output Modules, does Dataforth have any with Iout > 3A?
Yes, Dataforth has the SCMD-MODC5ML which can switch up to 5A DC from an off-state voltage up to 50VDC.
The basic data sheet can be found in the Dataforth Full-Line Catalog under SCMD–MOAC/MODC Miniature Digital Output Modules and at www.dataforth.com at the upper left, under Explore our product offerings:, click on Signal Conditioning. Then click on Isolated Digital I/O Modules. In the top center of the next page, click on the Adobe Acrobat symbol to the right of SCMD–MOAC/MODC. At the right edge of the page in a text box labeled Datasheet, click on SCMD Specifications for detailed specifications of all Digital I/O Modules.
Keywords/Phrases: SCMD, SCMD–MOAC/MODC, SCMD-MODC, -MODC, Digital Output Modules, current, high, 3A, 5A
The basic data sheet can be found in the Dataforth Full-Line Catalog under SCMD–MOAC/MODC Miniature Digital Output Modules and at www.dataforth.com at the upper left, under Explore our product offerings:, click on Signal Conditioning. Then click on Isolated Digital I/O Modules. In the top center of the next page, click on the Adobe Acrobat symbol to the right of SCMD–MOAC/MODC. At the right edge of the page in a text box labeled Datasheet, click on SCMD Specifications for detailed specifications of all Digital I/O Modules.
Keywords/Phrases: SCMD, SCMD–MOAC/MODC, SCMD-MODC, -MODC, Digital Output Modules, current, high, 3A, 5A
